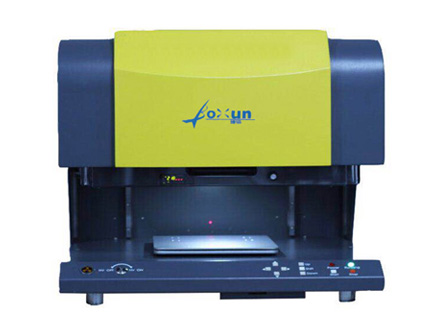

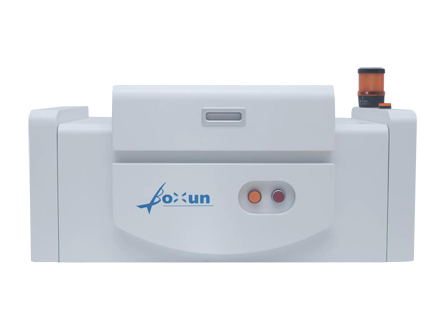

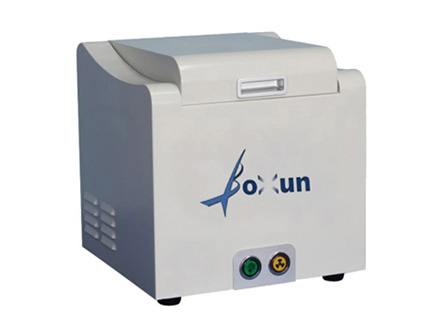

BXR-686Precious metal analyzer

Product introduction：

Bxr-686 precious metal analyzer is a precision instrument for analyzing the composition of precious metals, including chemical damage analysis instrument and physical non-destructive analysis instrument.

In view of the expensive price of precious metal itself, it can not easily damage its shape, so chemical damage detector is not often used in the jewelry industry. The rapid and non-destructive detector is widely used in jewelry testing industry.

Online consultation Back to list

Product features

High resolution

Clear camera, super convenient operation, super fast detection speed, super human interface
Easy to use

With one key operation, the analysis of carat grade and composition can be obtained
Innovation function

It helps to identify the innovative functions of gold-plated samples
Beautiful appearance

The fuselage structure is compact and strong, and the appearance is beautiful
Rapid detection

Rapid nondestructive analysis of samples
Fast and convenient

Using PC and software, the test certificate of sample can be made quickly and conveniently
Lighting

Through the camera and cabin lighting system, the test position of the sample can be seen in real time
Download and upload

The test data can be downloaded and uploaded to the network, and the test results are easy to view and share
Efficient

Multi language operating system
Safe and reliable

X-ray protection lock, only in the closed state will test work, safe and reliable protection personnel use

Technical specifications

Detector	American Amptek Si PIN / SDD (optional) detector, high efficiency pulse analysis system
High-voltage power supply	American Spellman 50W (50kV / MA)
X-ray tube	50W side window X-ray tube
Measuring time	30-100S
Scope of analysis	1ppm-100%
Sample cavity size	310×280×60（mm）
Accuracy of analysis	RSD≤0.05% Au≥90%
Working temperature	10-30℃
Power requirements	AC220v±5v,50/60Hz
Test elements	Au Mn Fe Co Ni Cu Zn Cd Sn Pb Ag

Application area

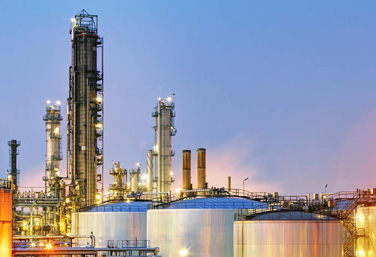

It is used in jewelry manufacturing, jewelry recycling, pawnbroking, refining industry, quality and technical supervision, cash and gold exchange, retail industry and other industries.
